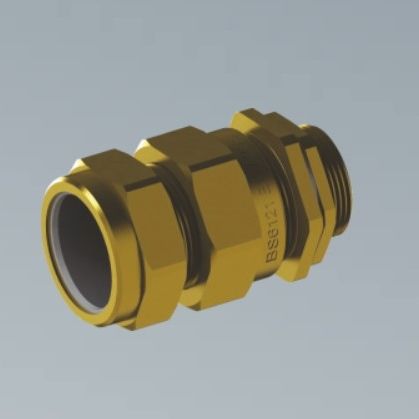

Brass cable glandBS 6121 - E1W Series
IP66
IP67
metric
添加到收藏夹”
Compare this product
Characteristics
- Material
- brass
- Protection level
- IP66, IP67
- Other characteristics
- metric, for armored cables, double
- Cable diameter
-
Min.:8.8 mm (0.35 in)
Max.:90 mm (3.54 in)
- Operating temperature
-
Min.:-20 °C (-4 °F)
Max.:80 °C (176 °F)
Description
Type: - E1W (Double compression gland) Material: - Brass with or without nickel plated Standards: - BS 6121 Thread options: - Metric , NPT , BSP & PG Application: - For indoor or outdoor use with all types of SWA cables Accessories: - Matching accessories available like PVC Shrouds locknuts & earth tag Function: - E1W type glands provide a seal on the inner sheath, a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond between the armour cable and the gland.
188188金宝搏
No catalogs are available for this product.
See all of ORTAC‘s catalogs
