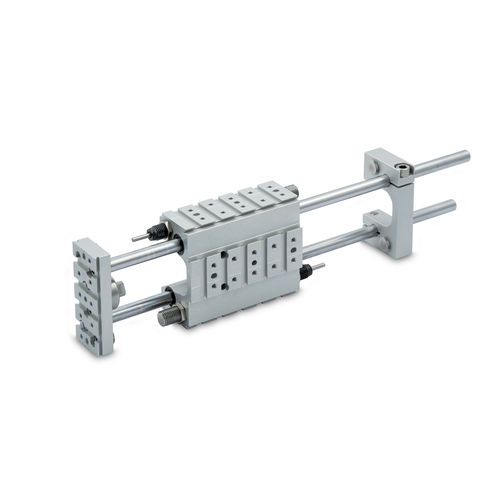

导球装置GDHK, GDMK系列

鸠尾 适用于气缸

导向单元GDHK和GDMK保证了连接到它们的气缸的良好对齐和抗旋转。它们可以单独使用，也可以组合使用，以获得完整的处理单元。典型的燕尾型V-Lock槽允许与V-Lock系列的其他元件组装。导向单元可以与ISO 6432气缸0 12,16,20和0 25相耦合。你不能使用传感器支架mod。DSW;- ISO 15552系列3气缸0 32和40;- ISO 15552 STD和A型气瓶0 32和40。不能应用位置传感器。-电动气缸系列Elektro ISO 15552 032。这是一个栏目较短的版本; the cylinder must be an anti-rotation type because the guide coupling is rotary and cannot prevent piston rod rotation. Series GDHK has bronze bushes and is more suitable for high loads. Series GDMK has recirculating ball bushes and is more suitable for high speeds. Guide units are available with 5 types of stop mechanism: - without stops (stop is provided by the cylinder); - with buffers for piston rod retraction; - with a hydraulic shock absorber for piston rod retraction; - with buffers for piston rod extension and retraction; - with hydraulic shock absorbers for piston rod extension and retraction. Quantity per package: 0 Minimum order quantity: 0 Unit of measure: items
