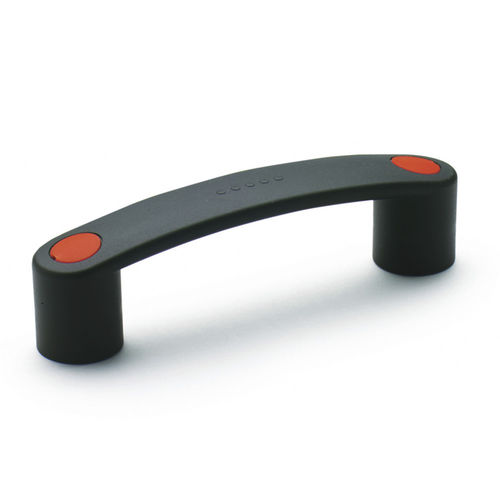

Pull handleEBP

door equipment polyamide

MATERIAL Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish. SCREW-COVERS Technopolymer in Ergostyle colours, matte finish; supplied with the handle, press-fit assembly, removable by a screwdriver. Available also as accessories sold separately (see table ECA.). STANDARD EXECUTIONS - EBP.: pass-through holes for front or rear mounting by means of cylindrical-head screws with hexagon socket, hexagonal-head screws or standard nuts. - EBP-B: brass bosses, threaded blind holes for back mounting. FEATURES AND APPLICATIONS EBP. handles with front mounting can be assembled in pairs opposed to EBP.B handles with back mounting (Fig. 1). TECHNICAL DATA Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature. ACCESSORIES ON REQUEST Spacer sleeves DS-EBP in polyamide based (PA) technopolymer to increase the distance between the handle and the fitting surface.
