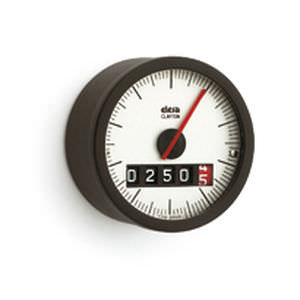

位置指示器PW12

模拟 panel-mount 固定的反应

情况下玻璃纤维增强聚酰胺(PA) technopolymer,黑色的颜色,喷砂面。Moulded-in主轴。边框Technopolymer。窗户上的塑造。基于窗口透明聚酰胺(PA-T) technopolymer(几乎牢不可破的)。耐溶剂、油类、油脂和其他化学药剂(避免接触酒精中清洗操作)。表盘自然哑光电镀铝。顺时针或逆时针方向的毕业,黑色的颜色。阅读5位滚轮计数器(四个黑色卷和一个红色的卷)和一个红色的指针拨毕业。红色的数字滚动显示十进制值,而指针显示了一百。 The display indicates the displacement of the mechanism controlled by the spindle from the start position (0). One complete turn of the machine spindle corresponds to a turn of the handwheel/knob and consequently to a turn of the red pointer. A turn of the red pointer corresponds to a determinate reading on the counter (see “reading on the counter after one revolution of the red pointer” in the table). IP PROTECTION The ultrasonic welding of the window to the case guarantees the complete sealing with IP 65 protection class, see table IEC 529 (on page A-19). FEATURES AND APPLICATIONS Digital-analogue positive drive indicators are suitable with spindles in any position. To choose the handwheel see the table “Handwheels/knobs - possible assembly with indicators” (on page 463). SPECIAL EXECUTIONS ON REQUEST - No pointer - Plain dial - Special dial with logo or customised graduations - Special readings after one revolution.
