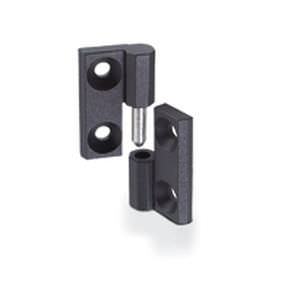

Concealed hingeCMMY
metal screw-in 180°

concealed hinge
concealed hinge
concealed hinge
concealed hinge
concealed hinge
添加到收藏夹”
Compare this product

Characteristics

Type
concealed
Material
metal
Installation
screw-in
Opening angle
180°
Length

Max.:60 mm (2.362 in)

Min.:40 mm (1.575 in)

Width

Max.:60 mm (2.362 in)

Min.:40 mm (1.575 in)

Description

MATERIAL Glass-fibre reinforced polyamide (PA) SUPER-technopolymer, black colour, matte finish. ROTATING PIN Self-lubricating glass-fibre reinforced polyamide based (PA) technopolymer, black colour. STANDARD EXECUTIONS Pass-through holes for countersunk head screws. - CFMY-D: rotation pin fitted on the right hinge body. - CFMY-S: rotation pin fitted on the left hinge body. ROTATION ANGLE (APPROXIMATE VALUE) Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane). Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance. To choose the convenient type and the right number of hinges for your application, see the Guidelines (see page 1298). MATERIAL Die-cast zinc alloy. COLOUR Black epoxy resin coating , matte finish. ROTATING PIN AISI 303 stainless steel. WASHER Polyamide based (PA) technopolymer. STANDARD EXECUTIONS - CMMY-D: pin fixed to the right body. - CMMY-S: pin fixed to the left body. ROTATION ANGLE (APPROXIMATE VALUE) Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane). Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

188188金宝搏

CMMY
CMMY
1 Pages
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
